1. Which length should I choose: 600mm or 900mm?

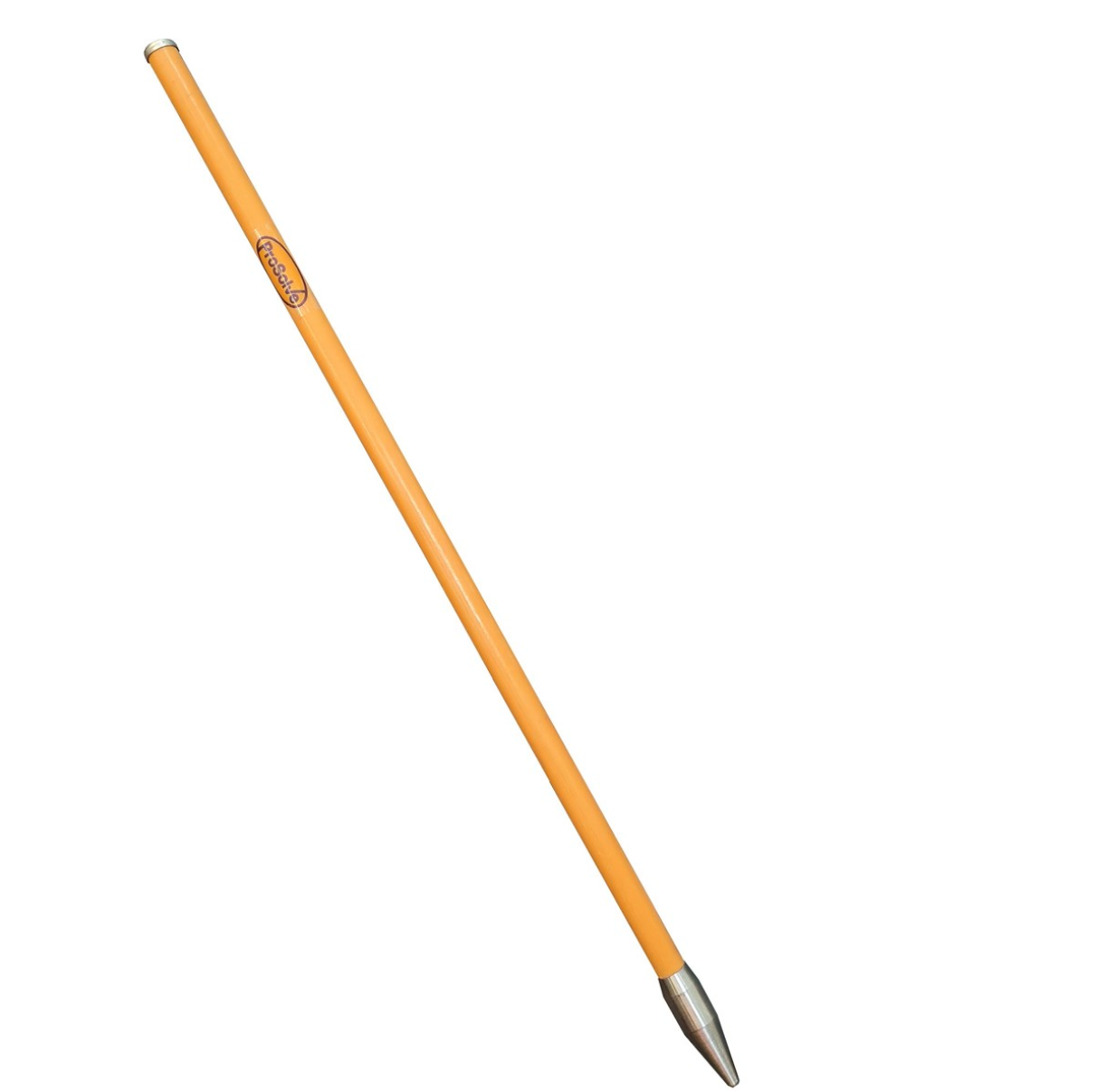

The 600mm pin is ideal for low-level ground marking, string lines, and survey work. The 900mm pin is the industry standard for supporting orange plastic barrier fencing and hazard tapes, providing enough height to remain visible and secure.
2. Why use an insulated pin instead of a standard steel one?

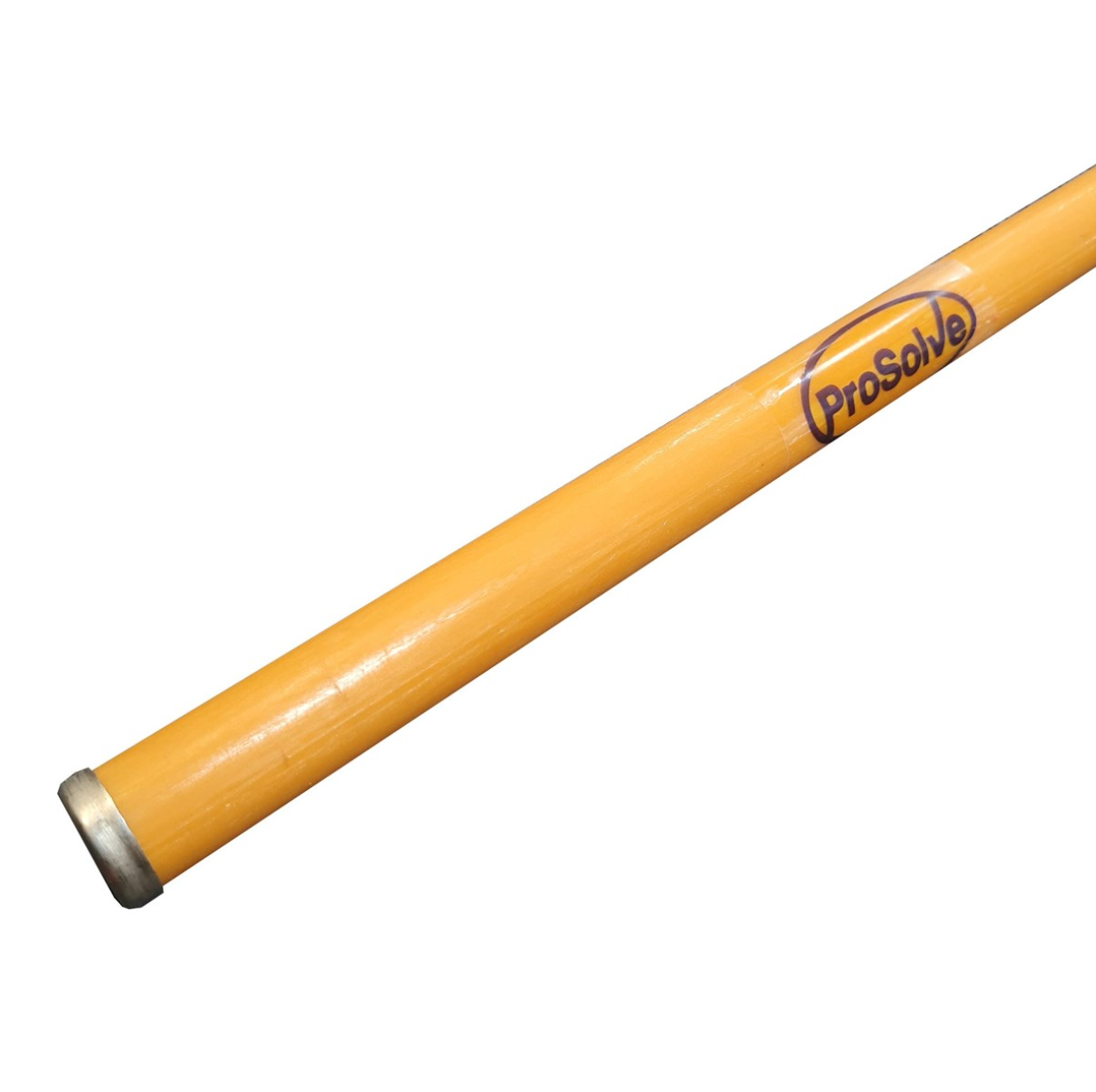

If a standard steel pin strikes a live underground cable, the current travels directly through the metal to the operator. These insulated pins break that circuit, significantly reducing the risk of a life-threatening electric shock.
3. Can these pins handle hard, rocky ground or asphalt?

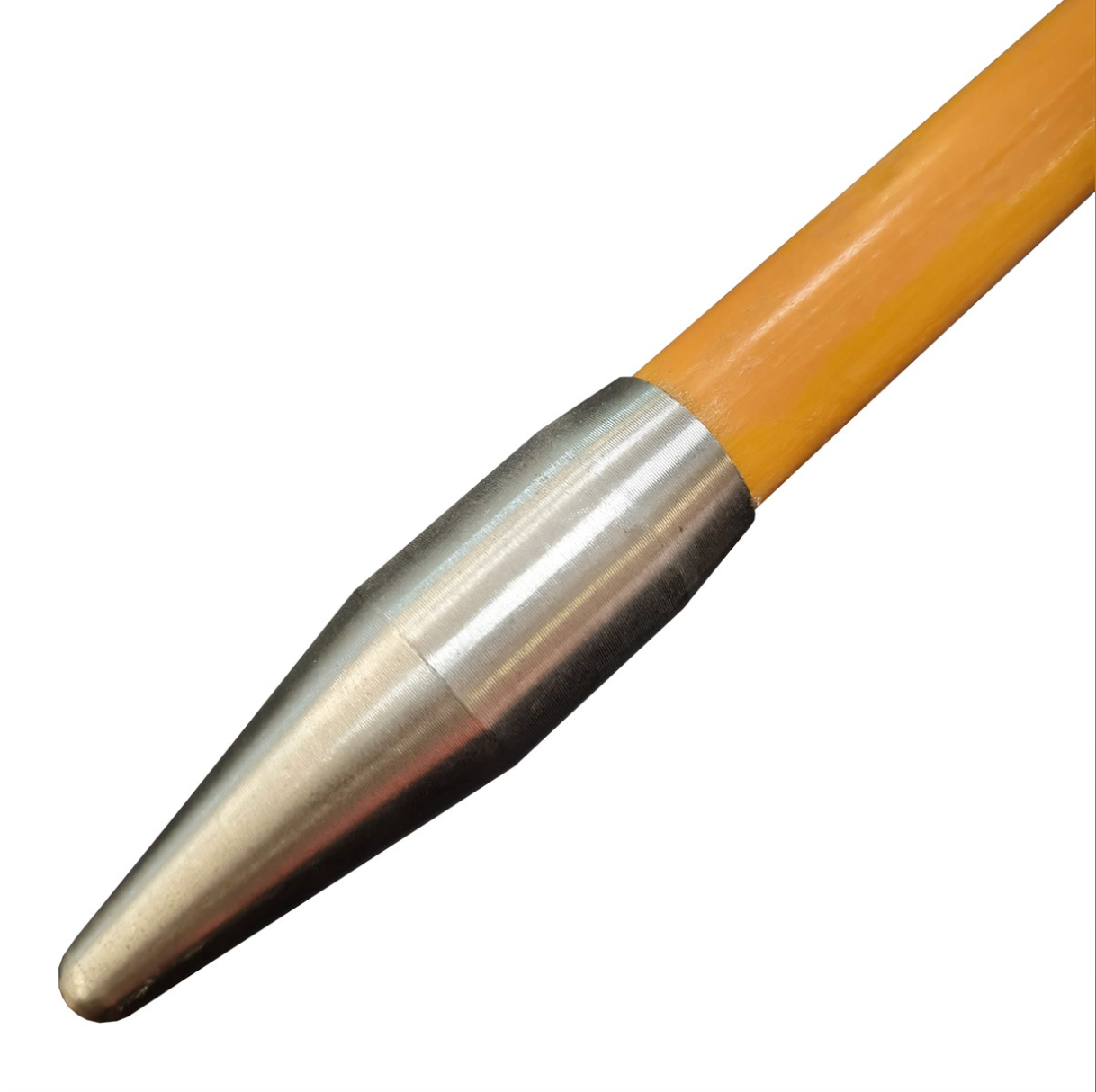

Yes. The core is made of solid, high-tensile steel. Despite the safety coating, the pointed tip is designed to penetrate compacted soil and road sub-bases just as effectively as a traditional uninsulated road pin.
4. How do I maintain the safety integrity of the insulation?
To ensure maximum protection, you should inspect the pins before each use. If the insulation is deeply gouged, cracked, or worn away to reveal the steel core, the pin should be replaced and no longer used in areas where electrical strikes are a risk.
5. Are these pins a substitute for CAT scanning?
No. These pins are a secondary safety measure. You should always use a CAT (Cable Avoidance Tool) and Genny to scan the area before any ground penetration. These pins provide the "final line of defense" in the event of an accidental strike.
All our products are dispatched from the United Kingdom, with most items arriving within 3-5 working days. For custom-made or made-to-order items, delivery times may vary, and any exceptions will be clearly indicated during the checkout process.
